Alerts Tab — Feature Guide

What it's for

The Alerts tab surfaces data-quality and dependency problems across every issue in the project — sprints, backlog, and any issues returned by the project's JQL filter. It tells the user which issues need attention before delivery: items closed without burning down their estimate, blockers that finish after their dependent starts, blockers and dependents in the wrong sprints, child issues whose due dates outlive their parents, missing planning fields, and circular dependency chains.

The audience is scrum masters, project managers, and release leads. Alerts is the deterministic counterpart to the AI-driven Risks tab: every alert here is produced by a rule, every rule has a single threshold, and the same rule that fires on this tab also feeds the Dashboard's Alerts and Dependency Conflicts diagnostic rows.

The tab assumes the user has a JQL filter or sprint board configured. With no filter and no issues, an explanatory empty state replaces the alert list.

Header / summary line

A summary line sits at the top of the panel:

• Total active alerts — sum of error- plus warning-severity items that have not been dismissed.
• Errors — red count: things the system treats as breakage (done with remaining work, dependency conflicts with explicit date violations, circular dependencies).
• Warnings — amber count: things that are merely worrying (overdue, child after parent, missing dates / estimates).
• Show dismissed / Hide dismissed — a toggle link that appears whenever any alert has been dismissed. Toggling reveals dismissed items in faded form with a Restore button per row.

The summary numbers always reflect the unfiltered totals so the user knows the overall state of the project even while reading a filtered view.

Search and severity filter

Below the summary, a Filter by issue key or text… search box narrows the visible alerts to rows whose issue key or message contains the typed string. Three severity pills sit next to it — All (default), Errors, Warnings — and AND-combine with the search. Both controls are local to the tab; they do not affect the summary numbers or the tab badge.

Domains and categories

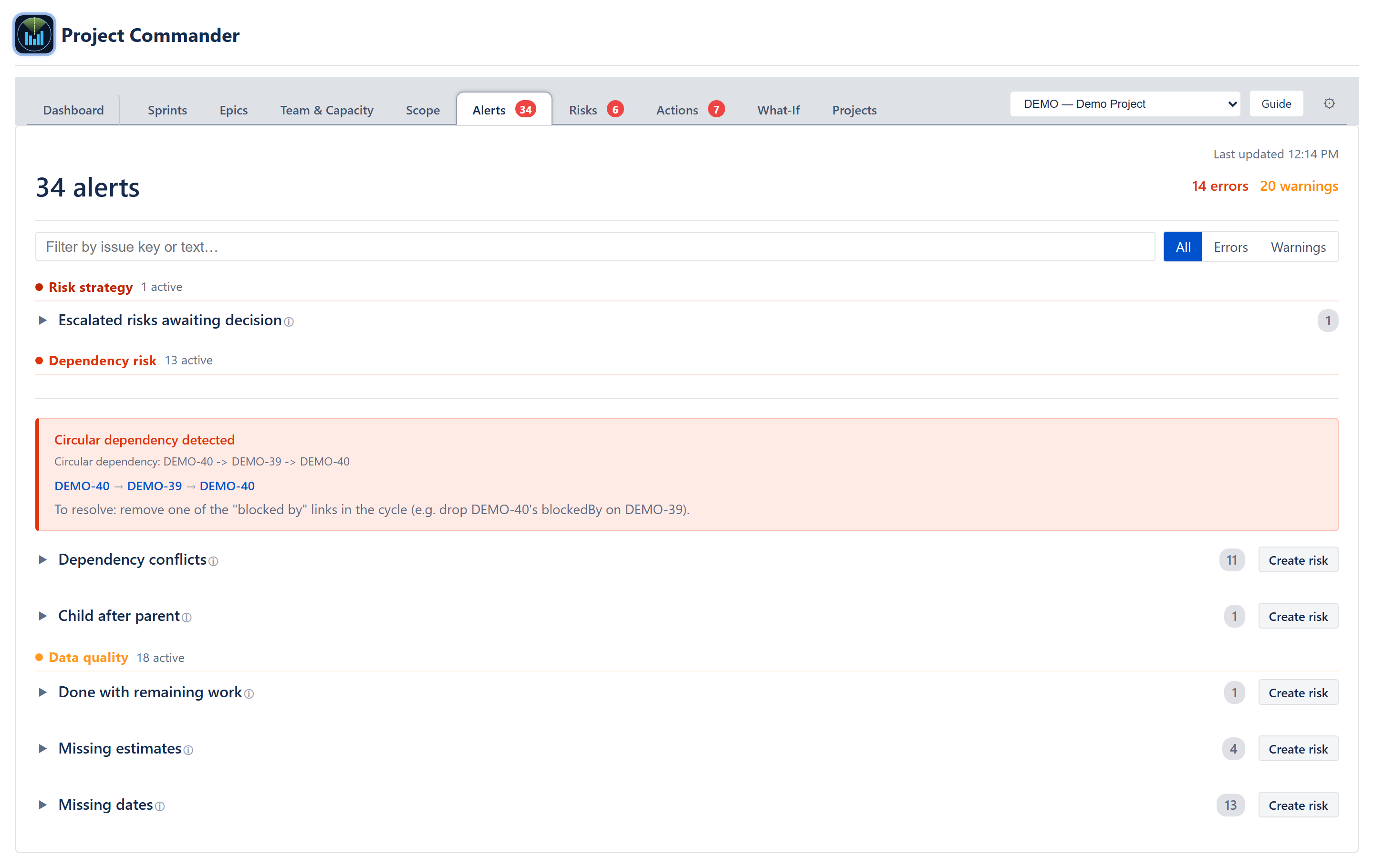

Alerts are grouped into three top-level domains, each with category sub-sections.

Risk strategy domain (purple accent)

Surfaces decisions on the Risks tab that are waiting on someone. Both categories link a row click back to the Risks tab with the affected risk scrolled into view.

• Escalated risks awaiting decision — every open risk whose response strategy is Escalate. Message reads Awaiting decision from {Escalation owner} (or Awaiting escalation owner when none is set). Severity: warning.
• Risk review due — every open Defer risk (or Accept risk with a review-by date) where today has reached review-by minus 3 days. Past review-by renders as error severity; within the lead window renders as warning.

Dependency Risk domain (red accent)

Where blockers, dependents, parents, and children create timing problems.

• Circular Dependencies — DFS over the blocks / blockedBy graph. The cycle path is rendered as a chain (e.g., PROJ-1 → PROJ-2 → PROJ-3 → PROJ-1) with each key linked to the issue. Cycles are deduplicated by sorted node set so A → B → A and B → A → B count once. A recovery hint sentence appears under the chain ("To resolve: remove one of the 'blocked by' links in the cycle (e.g. drop PROJ-3's blockedBy on PROJ-2)") so the user knows which edge to break first. Severity: error.

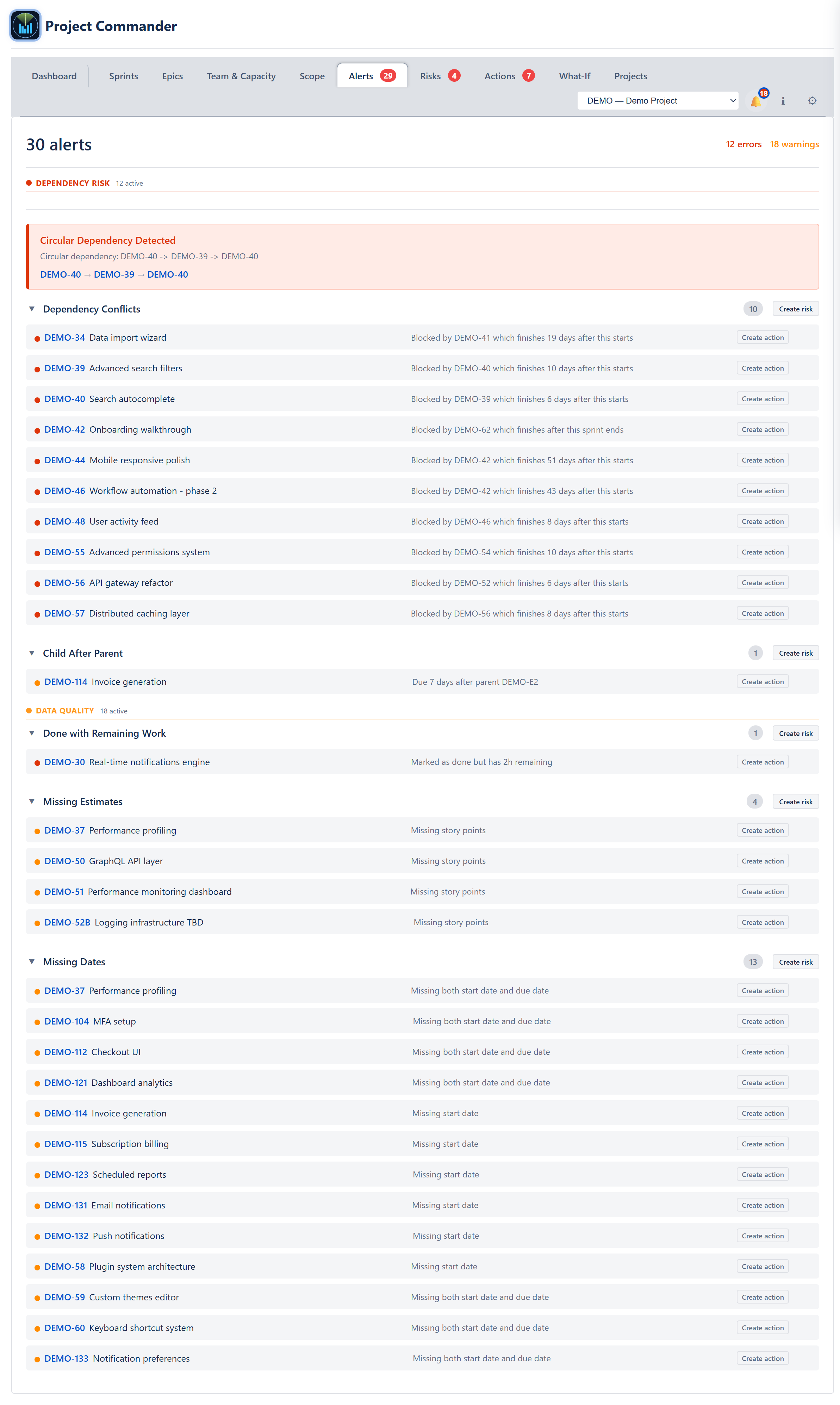

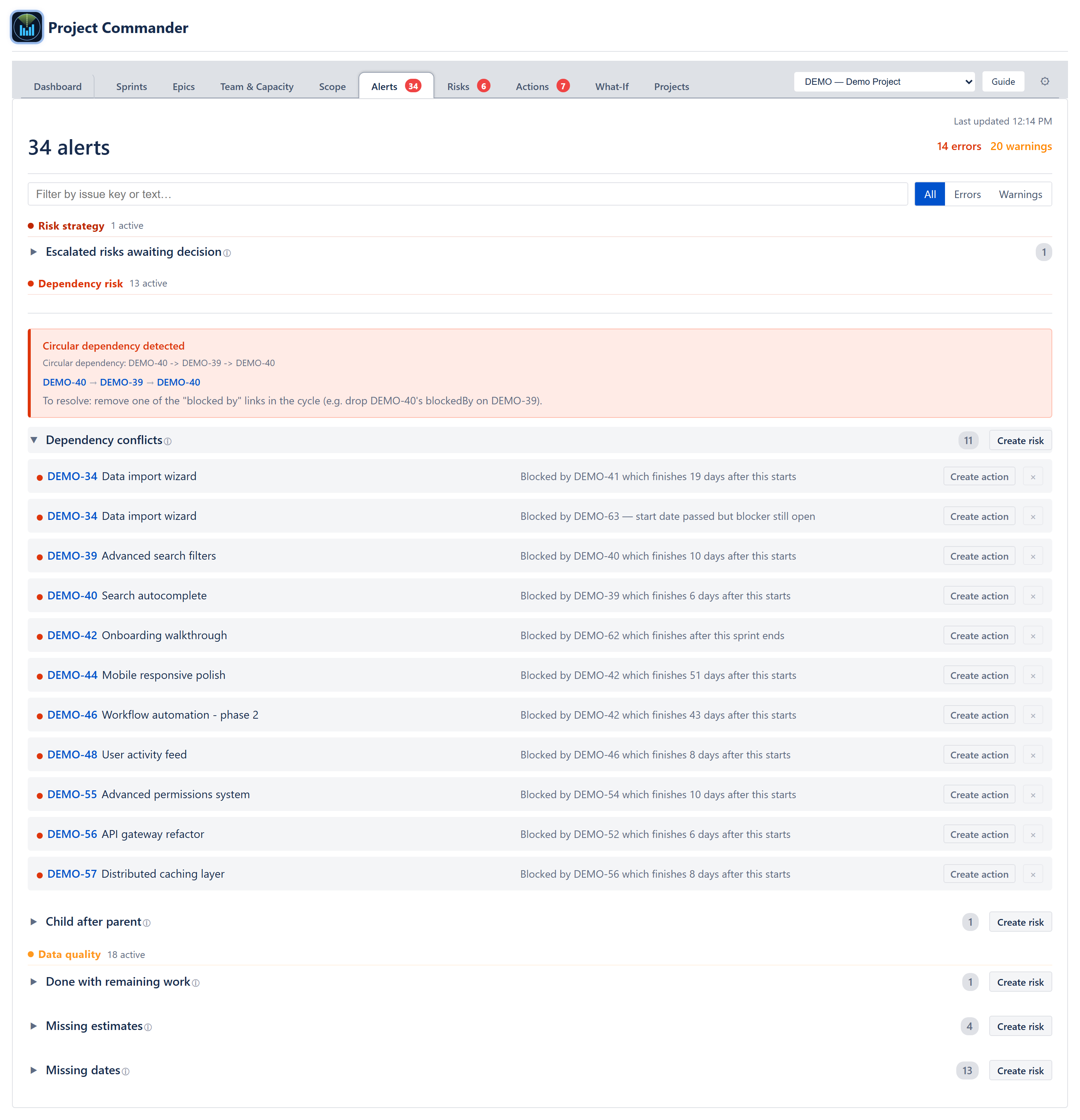

• Dependency Conflicts — fires when a blocker's resolved due date is later than the blocked issue's start date (error), when a blocker sits in a later sprint than the blocked issue (error), or when the blocker's status is unknown and dates are missing (warning). Also fires when the blocked issue's start date has passed but the blocker is still open beyond a three-day tolerance (overdue blocker check). The message reads Blocked by {KEY} — start date passed but blocker still open. Severity: warning when within the tolerance, error once well past.
• Child After Parent — child due date later than parent due date. Severity: warning. Message includes the day delta.

Data Quality domain (orange accent)

Where the issue itself is malformed or in an inconsistent state.

• Done with Remaining Work — issue is in a done-set status (done, closed, resolved, complete, completed) but remainingEstimate > 0. Severity: error. The remaining time is formatted human-friendly (2d 3h 45m).
• Missing Estimates — active or future-sprint issue that is not done has no estimate at all. In points mode this means storyPoints is zero or missing; in time mode it means both originalEstimate and remainingEstimate are zero or missing. Severity: warning.
• Missing Dates — active or future-sprint issue that is not done is missing one or both of startDate and dueDate. Severity: warning. The message specifies which field is missing.

The Overdue category exists in the alerts engine but is not rendered as a separate section in this tab — overdue items are summarised in the Dashboard's diagnostics row instead.

Per-row affordances

Each alert row contains:

• Severity dot — small red or amber dot on the left.
• Issue key — clickable link in monospace blue. Clicking it opens the issue in the Project Commander side panel.
• Issue summary — issue title plus the alert message (e.g., Blocked by PROJ-456 which finishes 5 days after this starts).
• Create action — a small button (visible only when an onCreateAction callback is wired in) that creates an action item on the most relevant sprint scope: the alert's sprint, or the active sprint, or the next future sprint, or Project scope as a fallback. The action title is auto-populated from the alert. A toast confirms.
• Dismiss (×) — appears on hover. Clicking it dismisses the alert. The dismissal is keyed by (alertId, issueKey) and persisted to the app's Forge storage under pc_dismissed_alerts (read from an in-memory cache hydrated at startup, so it restores instantly and survives reloads on the same Jira instance). Removed on uninstall.

Category headers

Each category is collapsible. The header shows the category title, the active alert count, and a ▶ / ▼ caret. A Create risk button at the right of the header is visible only when the category has alerts. Clicking it opens the Risks tab pre-populated with: the category title (e.g., Circular dependencies detected), an evidence block listing the alerts as bullet items, and a category / probability / impact pre-mapped from the ALERT_CATEGORY_MAP table.

A category that has no active alerts but does have dismissed ones still renders its (collapsed) header so the user can use Show dismissed to restore them. A category with no alerts at all is hidden entirely.

Empty / loading / error states

• Loading — Loading issues… while the JQL fetch is in flight.
• No data + no JQL configured — No data with a hint to configure a JQL filter in Settings.
• JQL error — the error message returned by the backend.
• All clear — green check + All clear! No alerts found when the issue set produces zero alerts.
• Per-domain clean — within an open domain, if every category there is empty (or all dismissed), a small green card reads No Dependency Risk alerts (or the analogous data-quality version) so the user gets explicit confirmation rather than a silent empty section.

Cross-cutting modes and settings

• Sprint mode — controls which issues are considered active. Closed-sprint issues are excluded from missing-dates and missing-estimates checks (those are historical noise) but can still trigger done-with-remaining and dependency-conflict alerts when the violation is current.
• Estimation mode — drives which Jira field is read for Missing Estimates. In time mode, the alerts read originalEstimate / remainingEstimate; in points mode, storyPoints.
• Demo mode / regression mode — the data source switches but the rendering and rule evaluation are unchanged.

How the numbers are computed

Every alert is produced by computeAlerts in alertsCompute.js plus the standalone DFS detector for circular dependencies. The implementation is documented in ALGORITHMS section 14c — Alerts Engine — including the sprint-boundary check inside Dependency Conflicts, the cycle deduplication in Circular Dependencies, and the JQL/sprints/backlog precedence used to merge the issue set.

Effects on other parts of the app

• Dashboard Project Statistics — the Alerts row and the Dependency Conflicts row both read the same alerts output. The Dashboard's Alerts row counts the same totals shown in this tab's summary line.
• Tab badge — the badge next to Alerts in the main navigation is the count of active error-severity alerts; warnings do not bump the badge.
• Risks tab — Create risk on a category jumps to Risks with an evidence block and pre-mapped probability / impact. Once a risk has been accepted from an alert, the link is recorded in the risk's provenance fields so the Risks card can show N alerts currently match.
• Action items — Create action puts the alert's evidence into the Actions tab on the most relevant sprint scope.
• Notifications — high-severity alerts (e.g., circular dependencies) feed the Notification engine.
